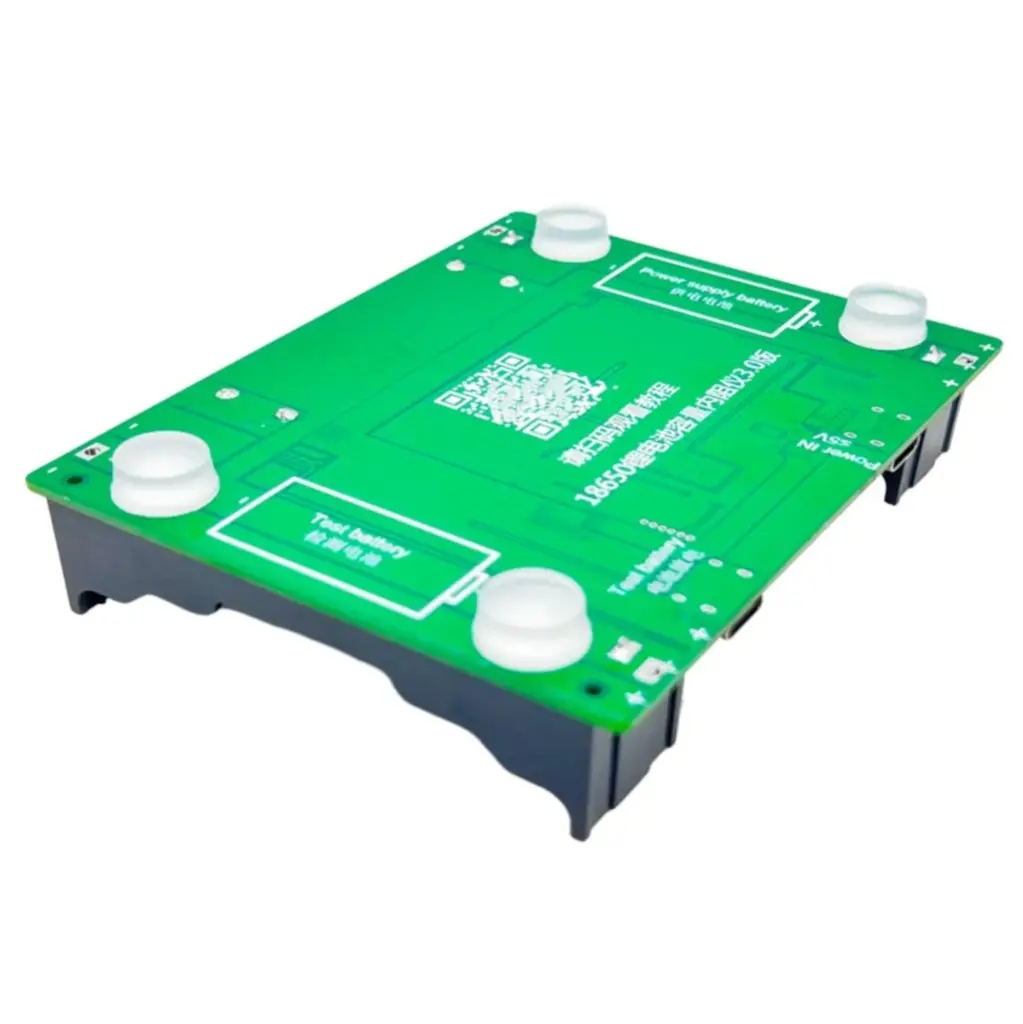

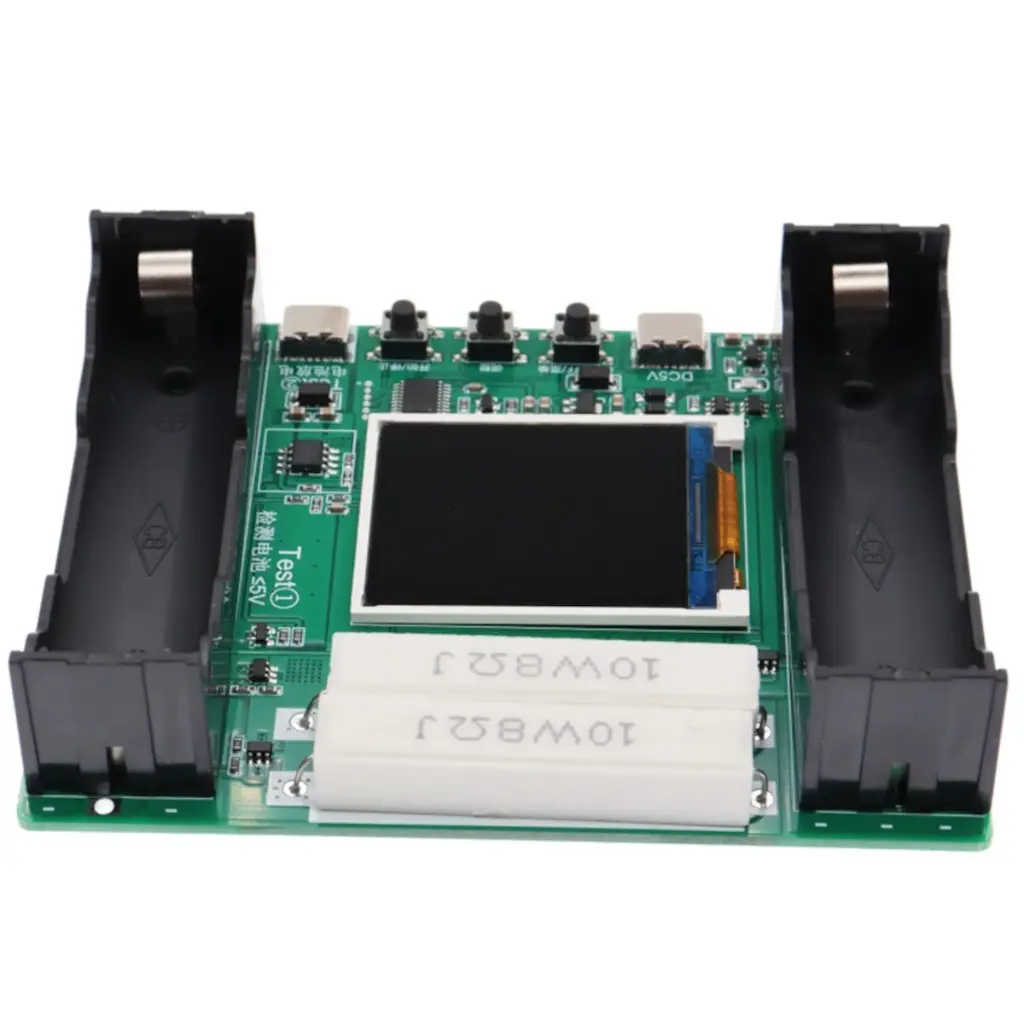

18650 Li-ion Battery Capacity Tester 1-Channel Automatic Charge Discharge Module Digital Type-C Auto

Note:

• Power supply with Type –C supports only with normal Charger, High power or Quick Charger are not supported
• The automatic charging and discharging function is not suitable for lithium-ion phosphate batteries.
• To change the language to English, kindly press and hold the On/OFF and Adjust(S) Buttons simultaneously, then power up the board through the C-type power supply Interface.

Features:

• Single-channel capacity and internal resistance measurement
• Supports up to 9 charging and discharging cycles in automatic mode.
• Compact 18650 battery holder, suitable for flat battery measurement.
• Adopt the DC two-wire method to test internal resistance
• Maximum charge/discharge current is about 1A
